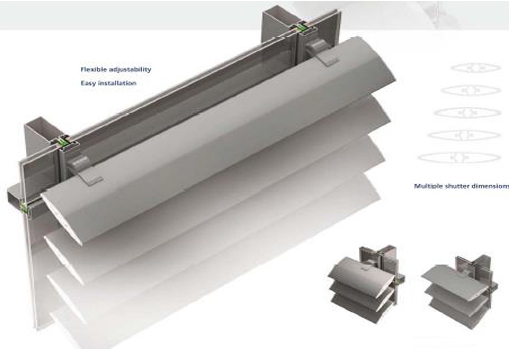

With versatile framing, sturdy railings, and smart sun shading, we cater to both residential and commercial projects. Transform your spaces with solutions you can trust.

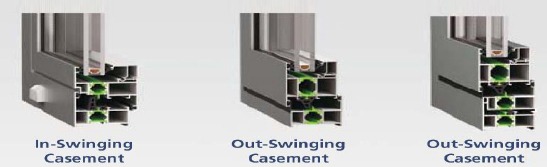

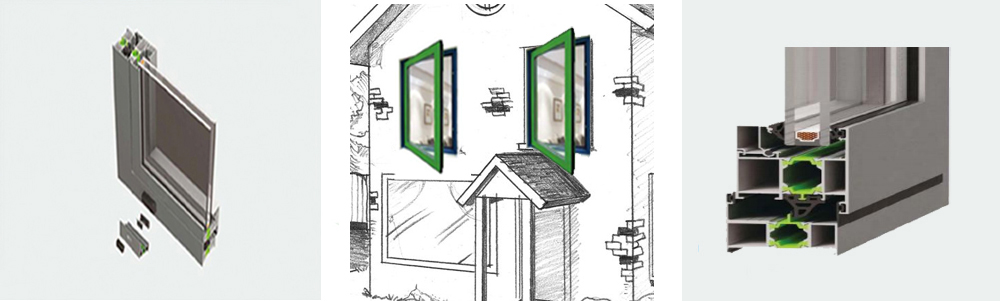

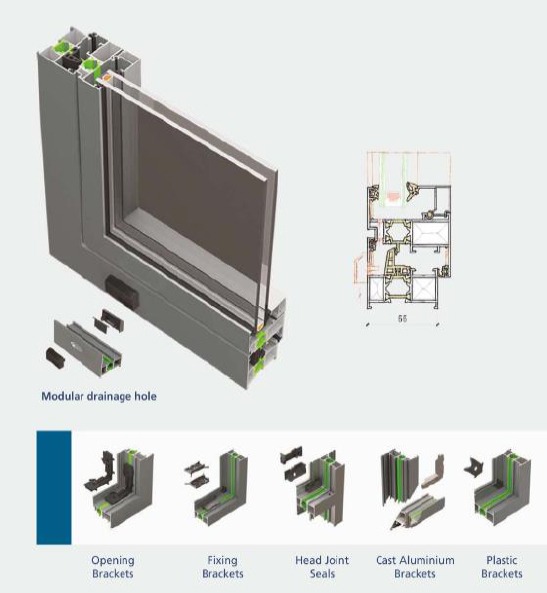

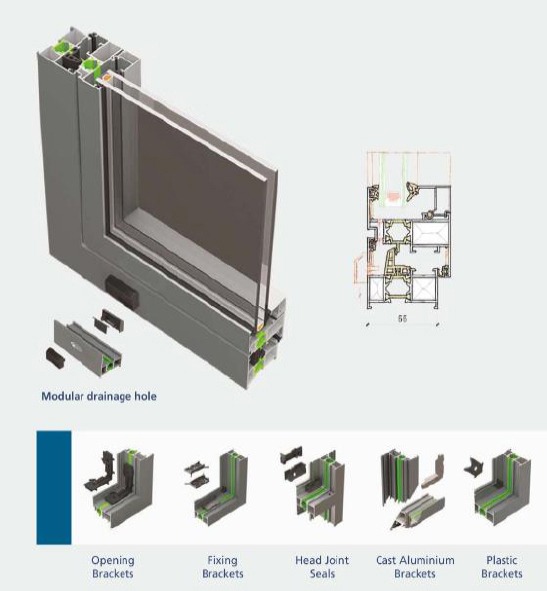

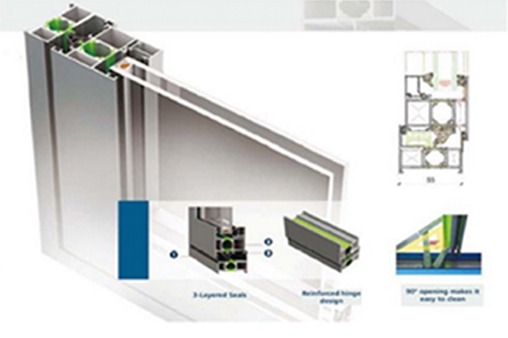

Opening 5519 Window
A trusted casement window crafted for everyday comfort. It opens smoothly, seals tightly against weather, and brings fresh air into any room with quiet reliability.
Specification
Frame Depth: 55mm
Mullion Depth: 55mm
In-Swinging Casement Depth: 65mm
C/CT/CI Type Insulation Strip Width: 19mm
Fixing Panel Thickness: 5 -34mm
In-Swinging Casement Panel Thickness: 5 -44mm
Out-Swinging Casement Panel Thickness: 5 -34mm
Structure Design
Quality
Visible panels of the Frame
Indoor: 29.6 / 33.6 / 14.6
Outdoor: 52.6 / 56.6 / 64.6
Visible panels of the Mullion
Indoor: 29.6 / 33.6 / 14.6
Outdoor: 52.6 / 56.6 / 64.6
Visible panels of the In-Swinging Casement
Indoor: 47.3
Outdoor: 31.3
Frame and Mullion Depth: 55 mm
Reinforced Mullion Height: 30 / 60 / 90
In Swinging Casement Depth: 65 mm
Out Swinging Casement Depth: 55 mm
Panel Thickness: 19 mm – 34 mm
Glass Installation: EPDM
Sealing Agent: EPDM
Insulation strip Specs: 19 mm wide, C / CT / CI
Thermal InsulationGB / T 8484: 6 | 2.5 > K ≥ 2.0
Wind ResistanceGB / T 7106: 9 | P3 ≥ 5.0
Water TightnessGB / T 7106: 6 | ▲p ≥ 700
Air TightnessGB / T 7106
Unit Fracture Length: 8 | q1 ≤ 0.5
Unit Area: 8 | q2 ≤ 0.5
Sound InsulationGB / T 8485: 35 ≤ Rw + Ctr < 40
LightingGB / T 111976: 4 | 0.50 ≤ Tr ≤ 0.60
